TBOLT MULTI-SERVO HARNESS MOUNTS INSTALLATION GUIDE

A UNIQUE MOUNTING OPTION FOR TBOLT MULTI-SERVO HARNESSES

TBOLT MULTI-SERVO HARNESS MOUNTS are a unique option for mounting TBOLT Multi-Servo Harness Connectors.

TBOLT MULTI-SERVO HARNESS MOUNTS

These mounts are perfectly designed to fit TBOLT Multi-Servo Harness Connectors. Available in "Panel" and "Right Angle" models. All mounts include mounting hardware. Available in ORANGE and GRAY.


Learn More about TBOLT MULTI SERVO WIRE HARNESSES HERE!

TBOLT MULTI-SERVO HARNESS MOUNTS - "Panel" Style installation instructions

1 SELECT MOUNTING LOCATION

Select a location to install the TBOLT MULTI-SERVO HARNESS MOUNTS. Make sure to select a location that will allow the mating TBOLT MULTI-SERVO HARNESS connector to be free of any binding or airframe mating components. These mounts can be installed on wood, or composite material. Mounts include a backplate/Installation Template that can be used to reinforce the mounting location.

SELECT MOUNTING LOCATION

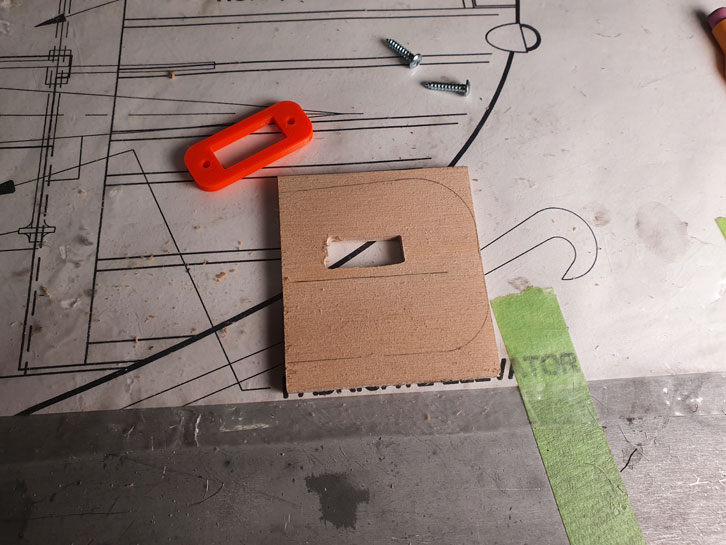

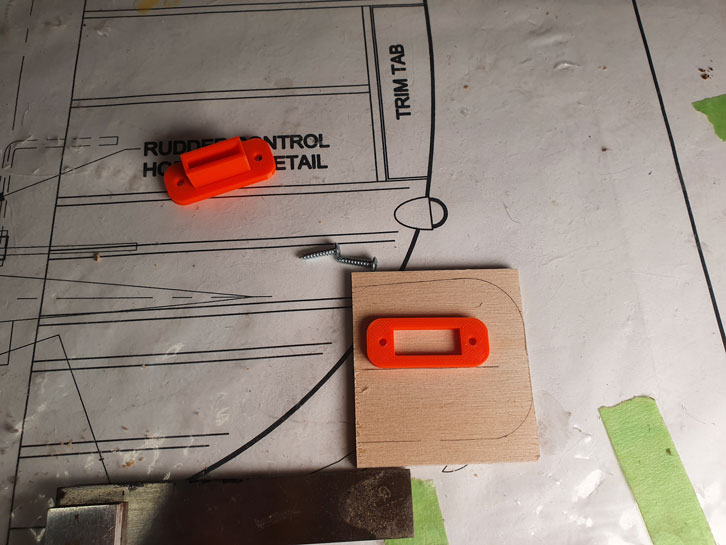

2 LAYOUT INSTALLATION

Use the Backplate/Installation Template to layout the hole that you will need to cut to fit the TBOLT MULTI-SERVO HARNESS MOUNT.

LAYOUT INSTALLATION

3 CUT MOUNTING HOLE

Cut Mounting hole as outlined in the above step.

CUT MOUNTING HOLE

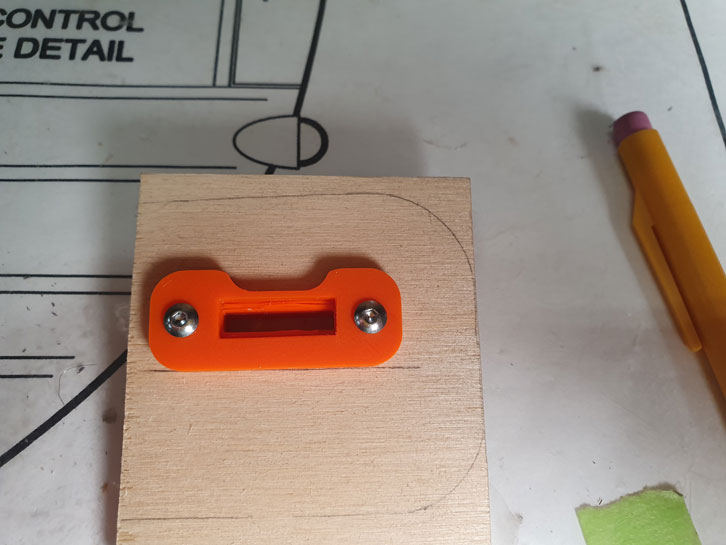

4 ATTACH MOUNT

Place TBOLT MULTI-SERVO HARNESS MOUNT in mounting hole. Drill the two mounting holes (use a 1/16" drill bit). Install screws through the Mount, mounting material, and the Backplate(If you decide to use the backplate).

ATTACH MOUNT

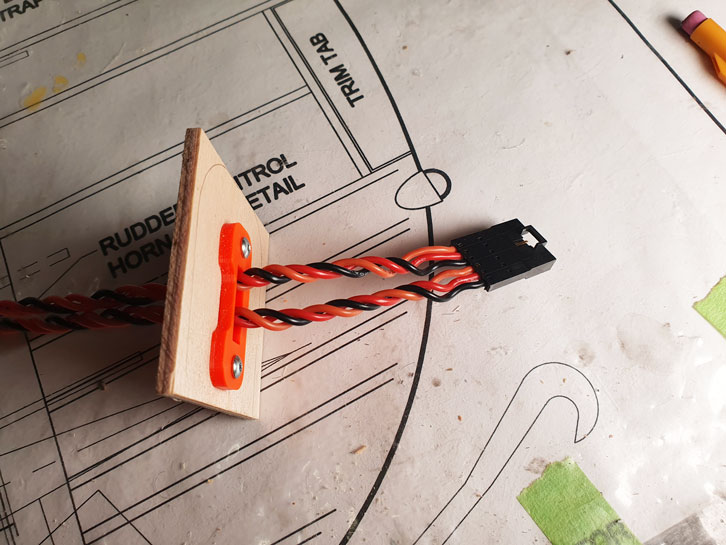

5 INSTALL WIRE HARNESS

Feed the TBOLT Multi-Servo Harness Wires through Mount. Make sure the TBOLT Multi-Servo Harness Connector locking clasp faces up in alignment with Mount grove.

ATTACH MOUNT

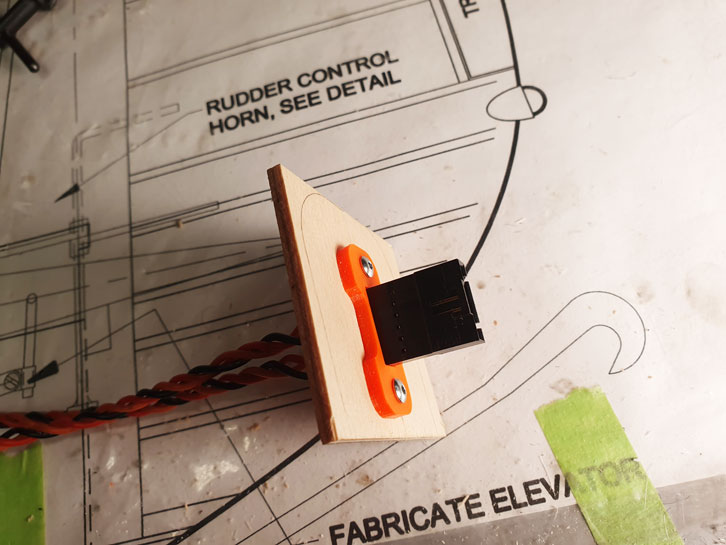

6 INSERT CONNECTOR

Align the TBOLT Multi-Servo Harness Connector with the Mount insert slot. Apply equal pressure to both sides of the TBOLT connector to insert into the Mount. There is a tight friction fit between the TBOLT Connector and the Mount. If you want a permanent installation, you can add a dab of adhesive (we recommend a quality epoxy, like Hysol) between the TBOLT Connector and the Mount. You can also use a non-permanent adhesive like Automotive GOOP. Make sure adhesive doesn't get inside the TBOLT Connector housing.

INSERT CONNECTOR

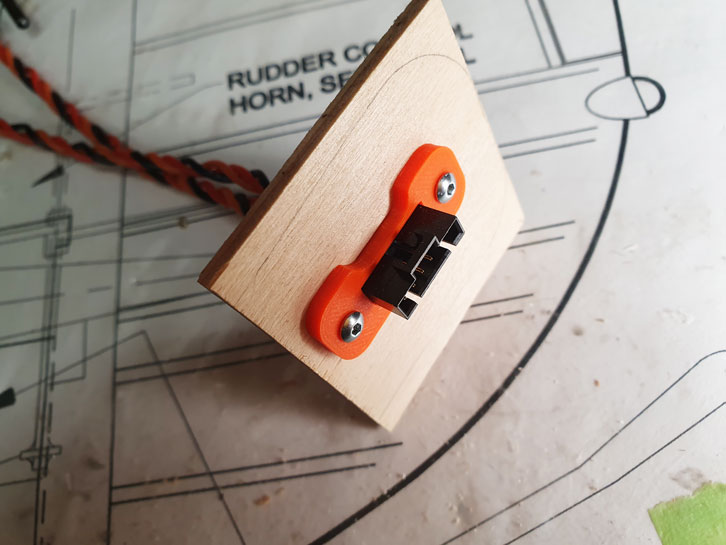

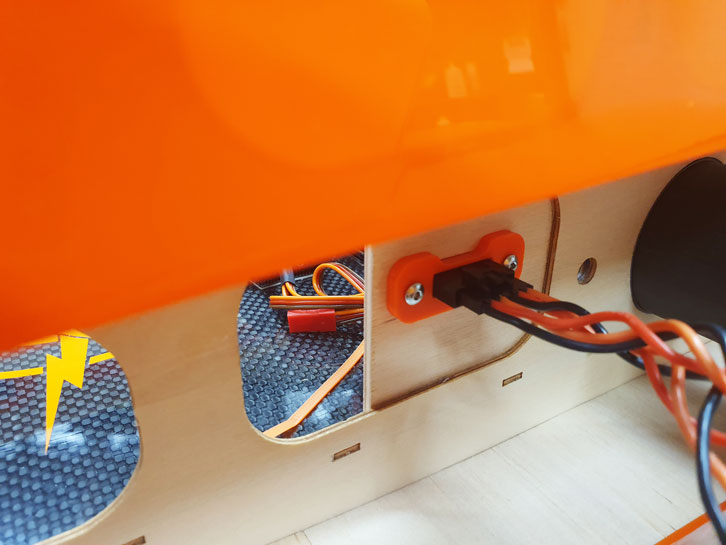

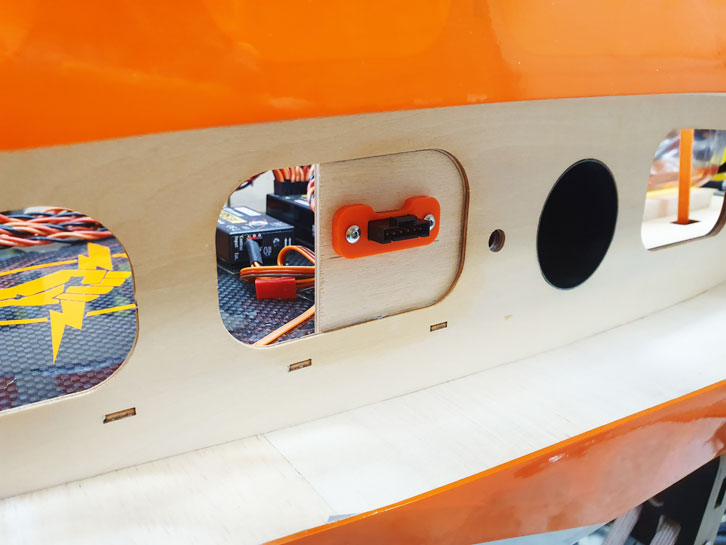

INSTALLATION COMPLETE!

INSTALLATION COMPLETE
INSTALLATION COMPLETE
INSTALLATION COMPLETE

TBOLT MULTI-SERVO HARNESS MOUNTS - "Right Angle" Style installation instructions

1 RIGHT ANGLE MOUNTING OPTIONS

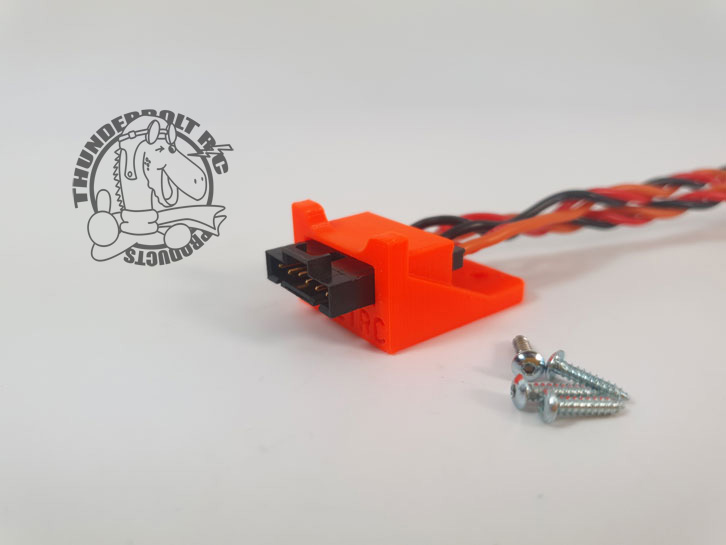

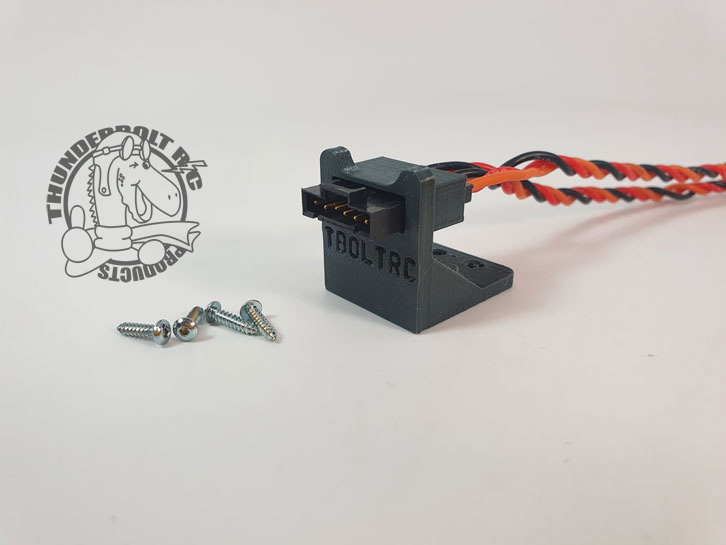

TBOLT MULTI-SERVO HARNESS MOUNTS are available in two sizes: Standard Size (which have a height of 1.1" (28mm)) and Low Profile Size (which have a height of 0.68" (17mm)).

Standard Size Right Angle Mount Standard Size Right Angle Mount

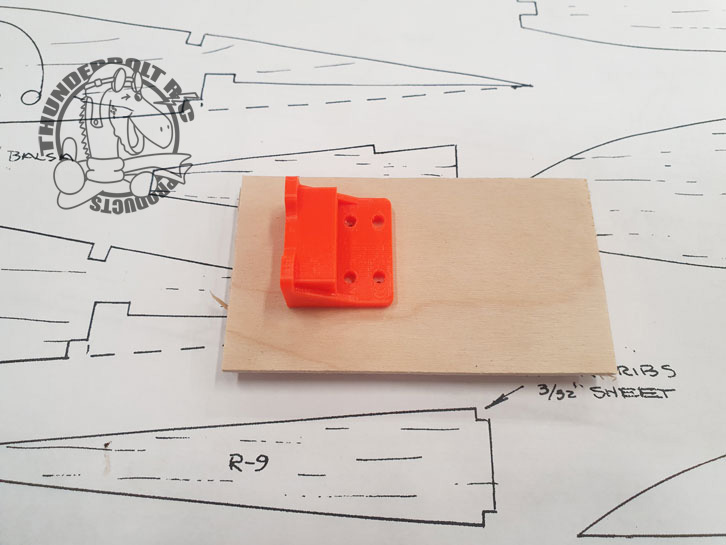

2 RIGHT ANGLE MOUNT INSTALLATION

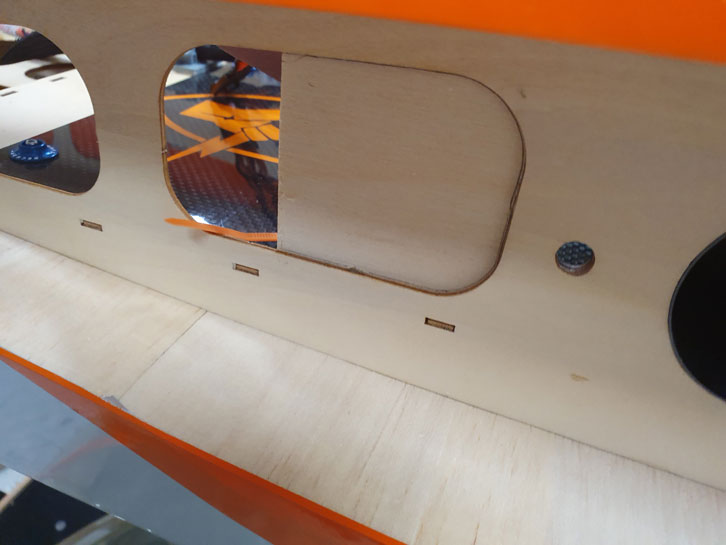

Select a location within your aircraft fuselage that has a enough clearance in front of the mount to attach and remove the TBOLT MULTI Servo Connector.

LAYOUT INSTALLATION

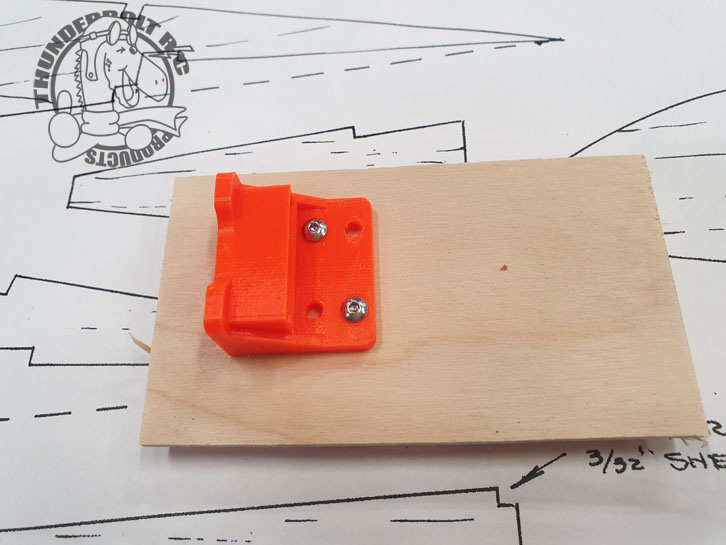

3 FASTEN THE MOUNT TO THE FUSELAGE

Use the included screws or an adhesive to fasten mount to fuse surface. If using adhesive (we reommend Hysol), roughen bottom Mount surface with sandpaper before applying adhesive.

INSTALL MOUNT

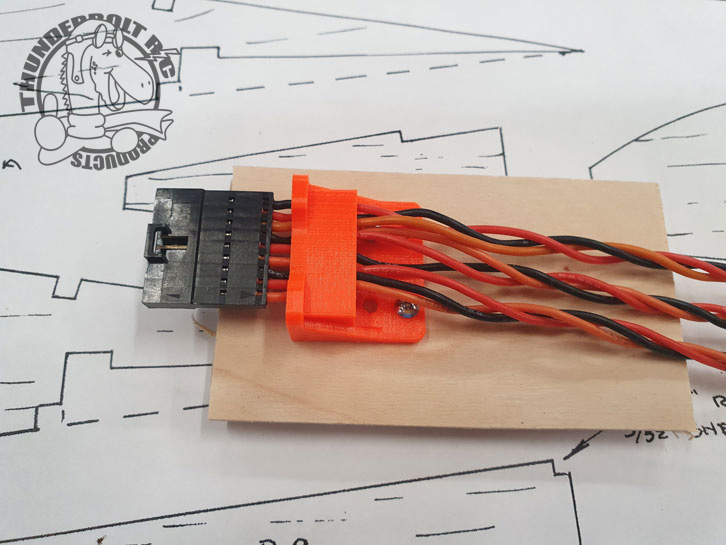

4 INSTALL WIRE HARNESS

Feed the TBOLT Multi-Servo Harness Wires through Mount. Make sure the TBOLT Multi-Servo Harness Connector locking clasp faces up in alignment with Mount grove.

FEED WIRES

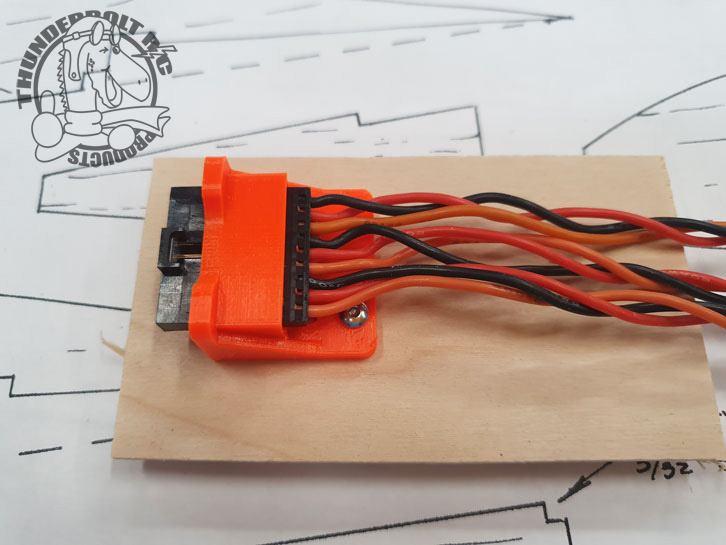

5 INSERT CONNECTOR

Align the TBOLT Multi-Servo Harness Connector with the Mount insert slot. Apply equal pressure to both sides of the TBOLT connector to insert into the Mount. There is a tight friction fit between the TBOLT Connector and the Mount. If you want a permanent installation, you can add a dab of adhesive (we recommend a quality epoxy, like Hysol) between the TBOLT Connector and the Mount. You can also use a non-permanent adhesive like Automotive GOOP. Make sure adhesive doesn't get inside the TBOLT Connector housing.

INSERT CONNECTOR

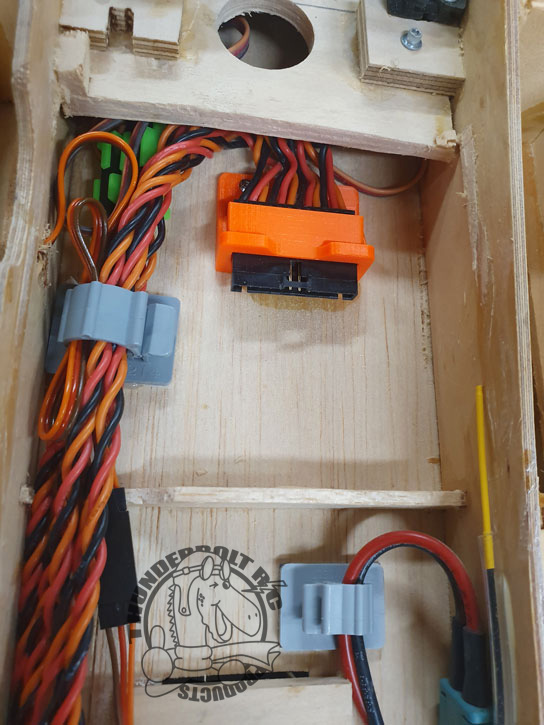

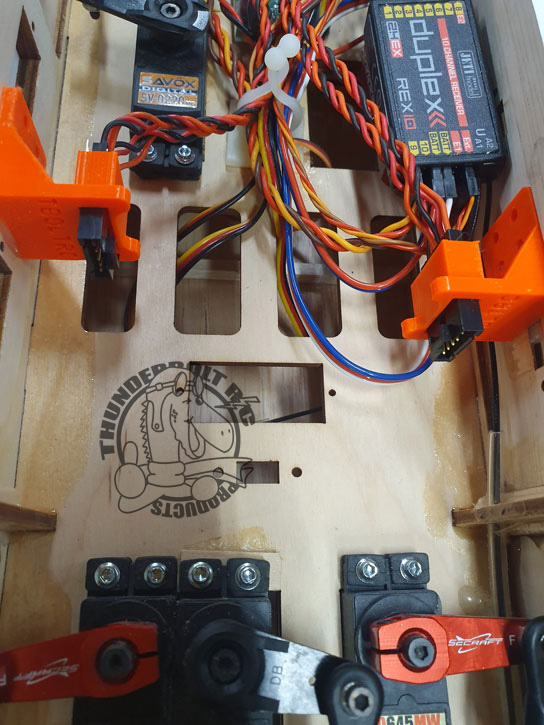

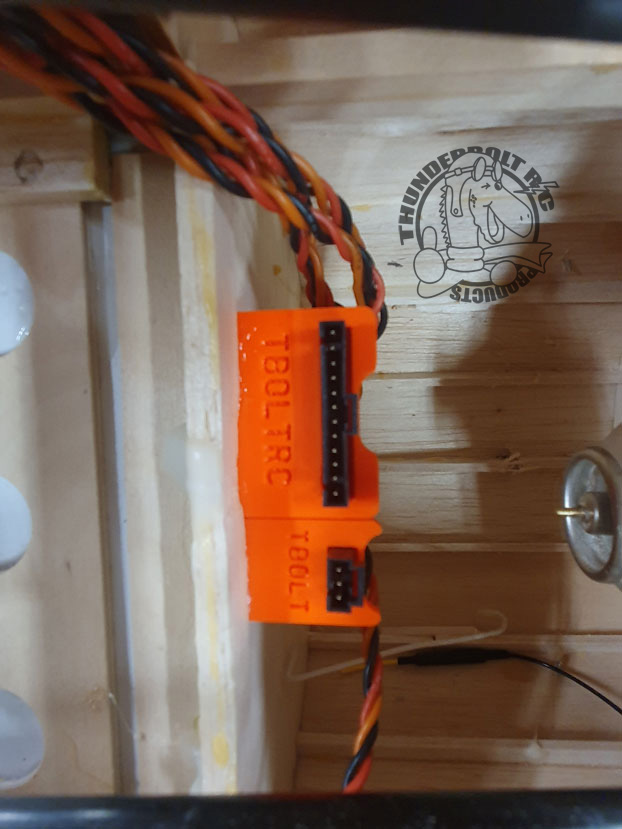

INSTALLATION COMPLETE!

INSTALLATION COMPLETE
INSTALLATION COMPLETE
INSTALLATION COMPLETE
